Sunday, December 21, 2014

Beanie



Also made from bias-cut flannel.

The past two weeks I have built two sawhorses; overhauled a bandsaw, a contractor tablesaw, and a drill press, made a present; and started rebuilding a cement shear. The tablesaw the most intensive project. I replaced every bearing in it (6?), removed the rust, aligned the trunnions using an indicator, replaced missing bolts, fixed the lock on the fence, and re-wired the motor for 220v. The arbor bearings were a very tight 30-year-old press fit. I don't have a real press (Edit: I have a nice 'push-puller' now), but I do have these 1/2" threaded rods which were going to be part of cheap bench vises. Well greased, it still took about 30lbs of force on the end of the wrench to press the arbor off.

Tuesday, December 9, 2014

Running Hat

I made some running hats for my dad. The pattern is original, the general design isn't. They're made from bias-cut flannel. Mason charges $6000/hr for modeling. I only paid him $5500 so he looks like he just ate a slug.



If you hired him properly I'm sure he'd smile.



I've got a maker mark now; I've been putting it on things. It is inspired by (nearly copied from) Nichijou and all the people who say I am birdlike. I wish it was more original, but the straight lines and simple shape are perfect. I can put it on metals with a cold punch, on wood with chisels, and on cloth with some seriously permanent fountain pen ink:


If you're interested, I'll make you one for $20. Custom sizes and colors available on request. I also have another hat design that is taller and floppier; I'll post pictures of that soon.

Thursday, December 4, 2014

Paper Tree, Pencil Pouch, Pusheen



Design of tree by Francesco Guarnieri. If you google it, it's called a 'Fir Tree', though it looks more like a spruce to me. Below is a pencil pouch I made for a friend.






She also likes Pusheen, so I made her a 2d paper version. Before I cut out the cat, I had to sketch the outline. The design is Claire Belton's.




Thursday, November 20, 2014

Fixed Saws


Thought to take 'before' pictures this time.



After:



Straightened, cleaned, sharpened, and handle replaced. I turned it from olive wood. The ferrule is a bronze bushing. I also sharpened the keyhole saw, but it looks about the same.

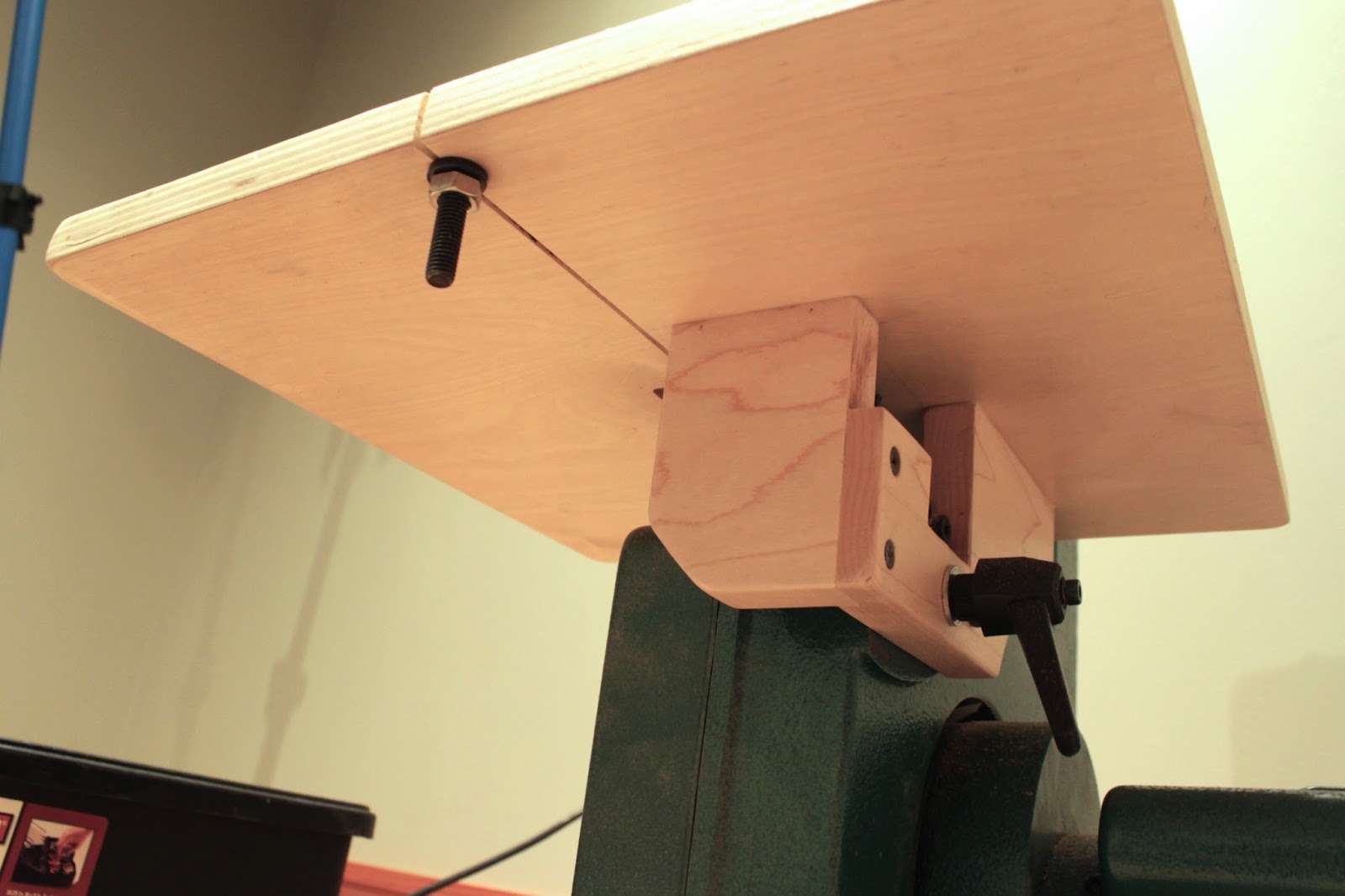

I also made a new table for a 9" bandsaw that I dearly wanted for my 12th birthday. I got it. The original table was very weak and it broke. The saw was unused for a long time, until I fixed it two weeks ago.


Complete with tearout, finish drips, and pencil marks. Still, it's the nicest part of the saw.


Below, slot for zero-clearance insert.



Tuesday, November 18, 2014

Polar Planimeter and How To Calibrate



Skip to the bottom of the photographs if you want to read about calibration.

I bought a planimeter on Ebay with the intention of actually using it. It cost about $40, which is both cheap and expensive depending on how you see it. Compared to making one from scratch, it is practically free. It's expensive in the sense that planimeters are very precise instruments, and you'd have to be lucky to end up with one in good condition after 50 years of use.


It took me a day and a half of machining and calibration to make it work properly again. One of the hardened bearing points on the 'integrating wheel' was shattered, so I put it in the lathe and sharpened it with an abrasive stick. I cleaned out the mating bearing surface with a sewing needle, alcohol, and compressed air.


Above, the setscrew head was mangled. I shaped a small screwdriver to remove it, and I restored the slot with a jeweler's saw. I filed some of the painted surfaces as you can see. Bare brass seems to endure the test of time, and the paint was not looking good.

Below, the 'dumb' wheel was sticky when I got it. I think it might have been that way from the factory. The shoulder screw didn't have any thread relief before the shoulder, so it would not shoulder up to the mating hole like it was supposed to. The person who put it together cranked down on the screw to remove lateral play from the wheel, and screwed up the threads. I filed a relief in the shoulder screw, filed the brass post down to a better situation, and countersunk the female threads a little. The wheel spun very freely afterwards.


How to Calibrate a Polar Planimeter:

There is a free book on planimeter use and theory here:
https://archive.org/stream/polarplanimeter00yendgoog#page/n6/mode/2up

I learned a bit from it, but ugh. Skipped much of the theory (I'm not that good at math). Not an easy read... obfuscated and longer than it needs to be.

So here is the machinist's guide to calibration and testing. I'm sure this is not good enough for some people, and far too thorough for others. I'm not responsible for wrecked planimeters; this was just my approach.
  1. Make the planimeter mechanically as good as it can be. It doesn't have that many parts, so take apart everything that comes apart easily. Remove rust with fine grit sandpaper, polish compound, or scotchbrite. Clean with alcohol or similar. Use thin lubricant (I used sewing machine lube, you could probably do better) on bearings and moving parts, grease on threads. Re-assemble.
  2. Adjust integrating wheel bearings, for correct distance from vernier scale and correct bearing preload. I tightened the female bearing a touch past when the play stopped being detectable. The wheel still spins freely enough that its inertia keeps it fairly still when the planimeter body is rocked along the same axis.
  3. Adjust the pointer, vertically. I just set the planimeter on a flat surface and made sure the body of the planimeter was parallel to the surface, accurate to maybe .01".
  4. Adjust the pointer location, so that the axis of the tracer arm (really an imaginary line that connects the pole-planimeter pivot axis to the pointer axis) is parallel to the axis of the integrating wheel. This is one of the variables that allows the planimeter to work as accurately as it does.

    I set out to do this by methodical placement of the 'test plate'. In theory, this can be worked out by putting the test plate closer to and further away from the 'post' (the part that sticks into the work and remains a stationary pivot). By comparing the test results inside and outside of the 'base circle' or 'neutral circle,' you can tweak the point for maximum accuracy. I must have measured a square mile trying to adjust the point this way. The point position that seemed to give the most repeatable accuracy in all positions was visibly NOT parallel with the axis of the integrating wheel though.

    What I found was that the planimeter was consistently more precise measuring the green and yellow test plate positions than the red one. It's clear when you use the planimeter that the red position will induce error. The wheel goes two steps forward and one step back, if you will, instead of just one step forward.



SO, I ended up aligning the pointer by eyeballing it, essentially. I did do some measurement. This seemed to yield better accuracy at green and yellow positions, and the red position is just not accurate.

KEEP IN MIND, these test plate trials were not returning accurate numbers, just very repeatable/precise ones. Repeatable being, +.03" to +.06" ^ 2. Three turns forwards and three turns backwards on the test plate brought the planimeter exactly back where it was. This gave me confidence that the integrating wheel bearings were adjusted correctly, and that the planimeter was going to work eventually. The tables at the back of the book show that this is reasonable precision for a polar planimeter. However, all of the results were a couple hundredths of a square inch too high. This segways into the next step.

      5. Adjust the tracer arm in or out to bring the planimeter to the correct scale. If the planimeter repeatedly measures more area than it's supposed to, the arm needs to be extended. If the planimeter is measuring low, the arm needs to be retracted. Make sure you are tightening the tracer arm setscrews in a way that keeps it parallel with the axis of the wheel.

      6. That's it! My repaired planimeter consistently measures ±.01" ^ 2 for the 10" ^ 2 test plate. Good as new!

Hopefully that helped.

Wednesday, November 5, 2014

Sunday, October 26, 2014

Metal Awl Shuttle

I made a metal shuttle for use in conjunction with the awl. It works well. I will include an aluminum one with awls sold on Etsy.


I will also sell them individually if anyone needs one. They would be about $15.00 each; email if interested.


Monday, October 13, 2014

Mk. III, Number Two


This is the awl I made to keep. Brass body.




It's already working hard, patching jeans:



A video of the awl in use is coming. The first Mk. III awl is now for sale on Etsy.

Thursday, October 9, 2014

Mill Motor and Pulleys


The large pulley is made of solid maple. I turned the OD on the wood lathe, and the ID on the metal lathe with a vacuum next to the cutter.  The small pulley, and bushing inside the large pulley are made of delrin. The white tube in the upper right contains the run capacitors and a leprechaun.


Above, a fuller view. Below, you can see the bottom of the bushing that interfaces the pulley with the spindle. There are two 4-40 clamping screws, radially symmetrical. 90ยบ from the clamping screws on the flange are 1/16" dowel pins, parallel with the spindle. These stick up into the wooden pulley to prevent slippage. I could have made the wooden pulley press-fit on the spindle, but I thought it would crack over time. It probably will anyway, but there was no decent plywood around. The wooden pulley ID is a slip fit onto the bushing. The delrin motor pulley is a press-fit.


Below is the first iteration of drive belt. It's made of a bicycle inner tube. It won't last forever but it works for now. Maybe a piece of thin leather will find its way into my hands by the time it breaks. If not, there is a steady supply of inner tube rubber. The pulley ratio ended up bringing the no-load RPM to 490 RPM. The motor can put out about 25 watts of power. I'm certain that a 16" bastard file could remove metal more quickly, but a 16" bastard file can't drill bolt patterns.



Above is the enclosure mounting bracket, also made of 3/4 maple. Made it with a jeweler's saw! Took a while.

Here is a video of it working:


Thursday, October 2, 2014

Japan Flag


I made this for a friend... I had the colors left from a futsal flag. Sorry Canada. It's double-sided.


The sun has some irregularities, which are intentionally representative of solar weather. Mhmm. It would be cleaner if I could sew it with a zig-zag without the end tucked, but it wouldn't be as strong and I don't have a zig zag machine. Regardless, I think it looks a lot better than a printed/dyed flag. It has depth.



I cut these hanging strips on the bias, sewed them, and inverted them with a long wire hook made of RG45 welding rod.
